Consolidation Apparatus

Description:
Application :

The Consolidation Apparatus is used for compression test of the soil by uploading weight set, in static conditions , to determine the relationship between deformation and compression of the soil, to calculate the unit settlement compression index、 resilient index as well as consolidation coefficient of the soil etc

Previous : Bench Type Tri-axial System

Next : Digital Control 4-Specimen Direct Apparatus

Product Introduction

WG-1C/WG-1B/GDG-4S

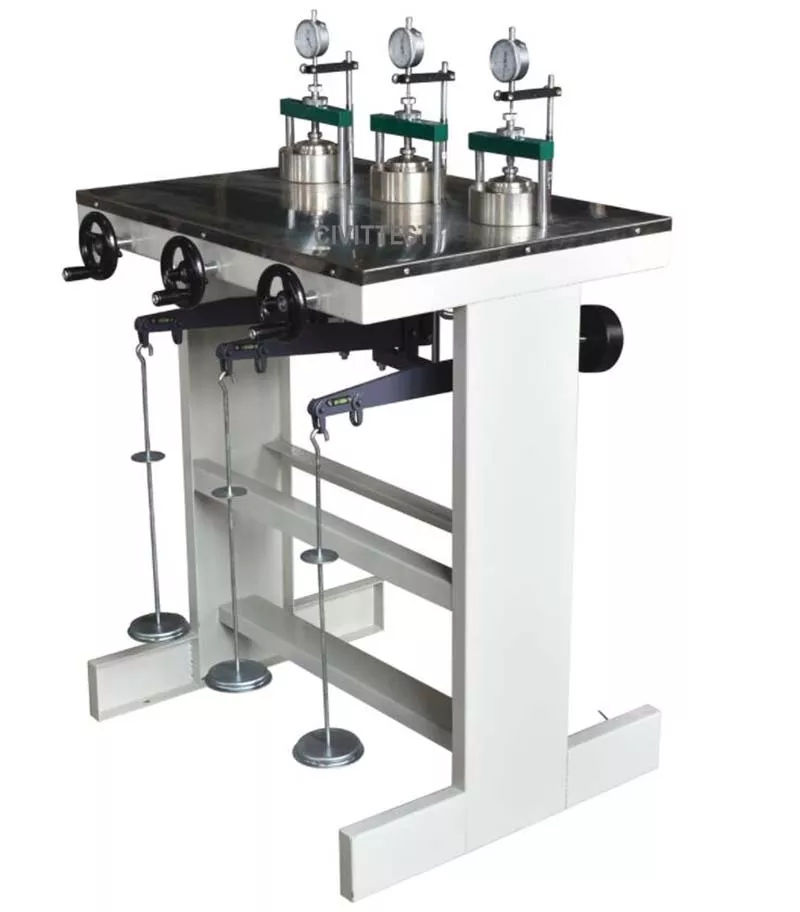

Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation

and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc.

Dial indicators need to be ordered separately.

STANDARD

ASTM D3080
BS 1377:7
AASHTO T236
NF P094071-1/2

TECHNICAL PARAMETERS

Model: WG-1C Item Name: Triplex Consolidation Apparatus

Descriptions

Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation

and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc.

Dial indicators need to be ordered separately.

Technical Parameter

Frame: Steel structure
Sample area: 30 cm² or 50 cm²
Sample's quantity: Three
Lever ratio: 12: 1; 10:1
Consolidation container: One beam, two beams, three beams
Pressure range: 12.5 kpa/30cm² to 800 kpa/30cm², 12.5 kpa/50cm² to 400 kpa/50cm²
Grade: 8, 7 grade

Model	WG-1C
Item Name	Triplex Consolidation Apparatus
Structure	3-gang structure
Frame	Steel structure
Sample Area	30 cm² or 50 cm²
Sample's quantity	Three
Lever ratio	12: 1; 10:1
Consolidation container	One beam, two beams, three beams
Pressure range	12.5 kpa/30cm² to 800 kpa/30cm², 12.5 kpa/50cm² to 400 kpa/50cm²
Grade	8, 7 grade

WG-1B Triplex Consolidation Apparatus

Descriptions

Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation

and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc.

Dial indicators need to be ordered separately.

Technical Parameter

Sample area: 30 cm² or 50 cm²
Lever ratio: 12:1; 10:1
Sample's quantity: Three
Pressure range: 12.5~1600kpa, 12.5~800kpa
Grade: 9, 8 grade

Model	WG-1B
Item Name	Triplex Consolidation Apparatus
Structure	3-gang structure
Frame	Steel structure
Sample Area	30 cm² or 50 cm²
Sample's quantity	Three
Lever ratio	12: 1; 10:1
Consolidation container	One beam, two beams, three beams
Pressure range	12.5 kpa/30cm² to 1600 kpa/30cm², 12.5 kpa/50cm² to 800 kpa/50cm²
Grade	9, 8 grade

Descriptions

Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation

and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc. Dial indicators need to be ordered separately.

Technical Parameter

GDG-4S Triplex Consolidation Apparatus

Sample area: 30 cm² or 50 cm²
Lever ratio: 24:1; 20:1
Sample's quantity: Three
Pressure range: 12.5~4000kpa, 12.5~2000kpa
Grade: 10, 9 grade

Model	GDG-4S
Item Name	Triplex Consolidation Apparatus
Structure	3-gang structure
Frame	Steel structure
Sample Area	30 cm² or 50 cm²
Sample's quantity	Three
Lever ratio	24: 1; 20:1
Consolidation container	One beam, two beams, three beams
Pressure range	12.5 kpa/30cm² to 4000 kpa/30cm², 12.5 kpa/50cm² to 2000 kpa/50cm²
Grade	10, 9 grade
