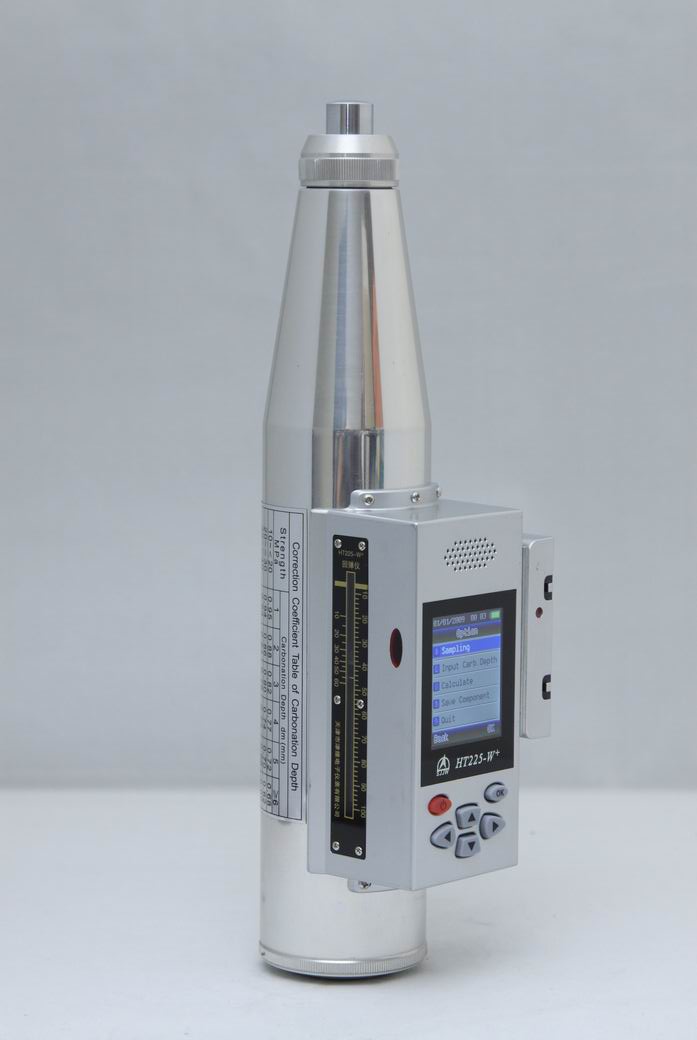

DIGITAL Concrete Test Hammer
- Description:
Item No: HZ-255W+ Item Name : Digital Concrete Test Hammer with voice reminder
Application :
For the non-destructive testing of the surface of hardened concrete in order to evaluate the strength in various parts of a structure.
Standards: GB/T9138-1988 standards JJG817-93 statutes and JGJ/T23-2001
ASTM C 805 EN 12504
Previous : Rebar Locator
Next : Concrete Test Hammer
- Product Introduction
- Features
- Specification
Applications
For the non-destructive testing of the surface of hardened concrete in order to evaluate the strength in various parts of a structure.
Feature
1. LCD large screen, high-resolution 160 * 160 (market products for the 160 * 128)
2. Low-power 2, 5# batteries (market products for the 6, 5# batteries)
3. Sweet voice report numbers function to improve the efficiency of testing staff. (Market products have no voice function)
4. Using USB communication interface, then quickly export the computer component data (market products for the RS232 interface)
5. Easy to operate, the software set the upper and lower rebound values, the outliers can be automatically removed.
6. Test hammer using imported parts, mechanical parts machining high precision
Specification:
|
Measuring strength ranges |
10~60Mpa |
|
Impact energy |
2.207J |
|
Strike hammer stroke |
75 mm |
|
The consistency of the sample displayed value |
≤± 1 (difference value between digital sampling output value and the pointer readings) |
|
Measurement range |
From 10 to 70 N/mm2 |
|
The rebound values calibrated on steel anvil |
80±2 |
|
Power |
1.5V AA alkaline batteries |
|
Power consumption approx. |
Sampling case ≤50mA (average current) |
|
Storage |
80000 testing result |

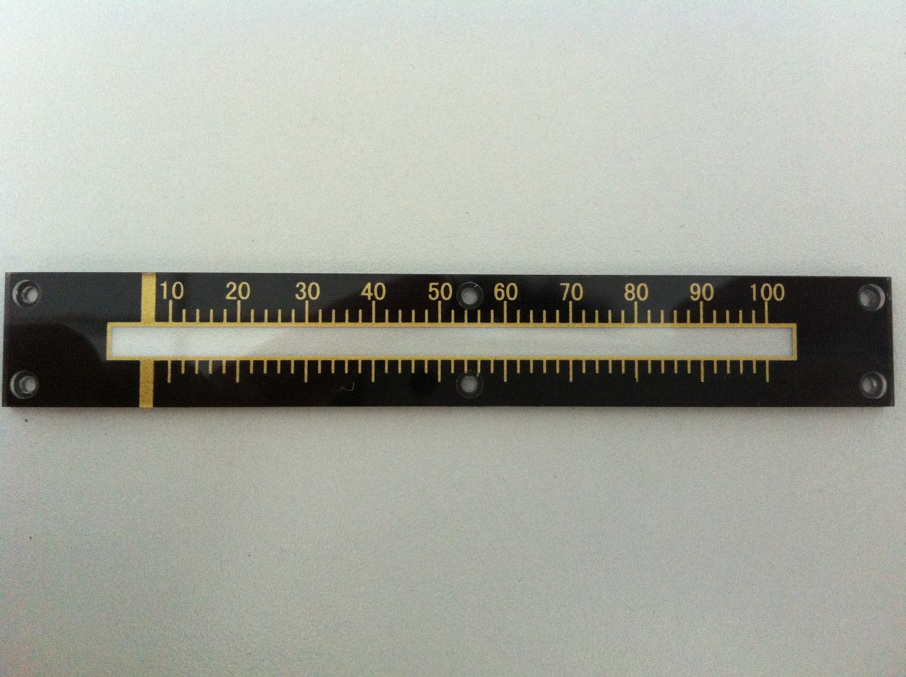

- Voice services, LCD and scale readings are double guarantee the accuracy of test values , when in-site test in case without power still can get the measure results through the scale, voice service can improve the efficiency of work at special environment
- Machine core applys imported metal material, high precision , long service life
- The host and sensor integration design, easy to operate and efficient,
- High-resolution LCD color screen 176×220
- USB fast communication with PC
- Easy to operate , friendly system interface
- Non-contact metal reflection grating and reflective encode sensing with high precision
- The difference between displayer and scale ≤0.3
Features :
|
Model |
HT-225-W+ |
|
Measuring strength ranges |
10~70Mpa |
|
Impact energy |
2.207J |
|
Spring constant |
785±30N/m |
|
Strike hammer stroke |
75 ±0.3N/m |
|
Size of screen |
L280×D54mm |
|
The rebound values calibrated on steel anvil |
80±2 |
|
Power |
3.7V 1500MH Lithium batteries |
|
Storage |
480000 testing results , 20 special test strength curves could also be planted into |
