Geotechnical Testing Equipment

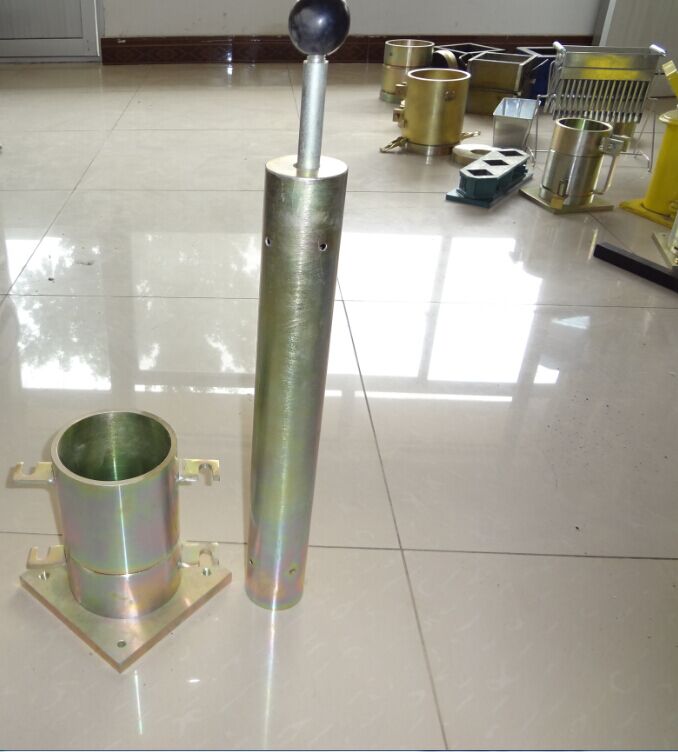

Modified Proctor Compactor ( manual )
- Description:
Standard : ASTM D558, D559, D560, D698, D1557;AASHTO T99,T134,T135,T136,T180
Modified Compactor or Modified Proctor Compactor , consits of Modified rammer and moulds , manual working way
Previous : Motorized Multifunction Compactor
Next : Standard Rammer and Mould
- Product Introduction
- Specification
Standard: ASTM D 558, D698
compaction mould steel, 152.4mmI.D. x 116.4mm height x 2124 cc. volume, complete with collar and base plate Compaction Rammer is 4.5 kgs. in weight x 18” controlled fall. Face of the rammer is 2”
Model: SXQJ-1 Product Name: Soil Manual Compactor
Detailed Product Descriptions：
|
Product Name |
Manual Proctor Compactor |
|
Meeting standard: |
BS 1377, 1924; EN 13286-47; ASTM D1883; AASHTO T193 |
|
Material |
Steel material |
|
Proctor rammer |
2.5kg |
|
Product mould |
101mm |
|
Working way |
Manual |
|
OEM Production |
Can be ordered separately |
|
Other Export information : |
|
|
HS Code: |
90318090 |
|
Dimen |
110×35 ×40mm |
|
Gross weight |
15kg |
Model: SXZJ-1
Product Name : Modified Proctor Mould
I. Use
It used to test relationship between the moisture content and density of compacted soil.
II. Description
Made of plated steel. Includes collar, mould body and base plate.
III. Technical Specification
|
Model |
SXZJ-1 |
|
Product Name |
Modified Proctor Mould |
|
Meeting standard |
• AASHTO T 134 AASHTO T 135 AASHTO T 136 • AASHTO T 180 AASHTO T 99, ASTM D1557, • ASTM D1558 ASTM D558 ASTM D698, • ASTM D559/559M ASTM D560/560M |
|
Diameter of mould |
152mm |
|
Height of mould |
177mm |
|
Material |
Galvanized steel material |
|
Based plate |
Yes |
|
Clamp |
Yes |
