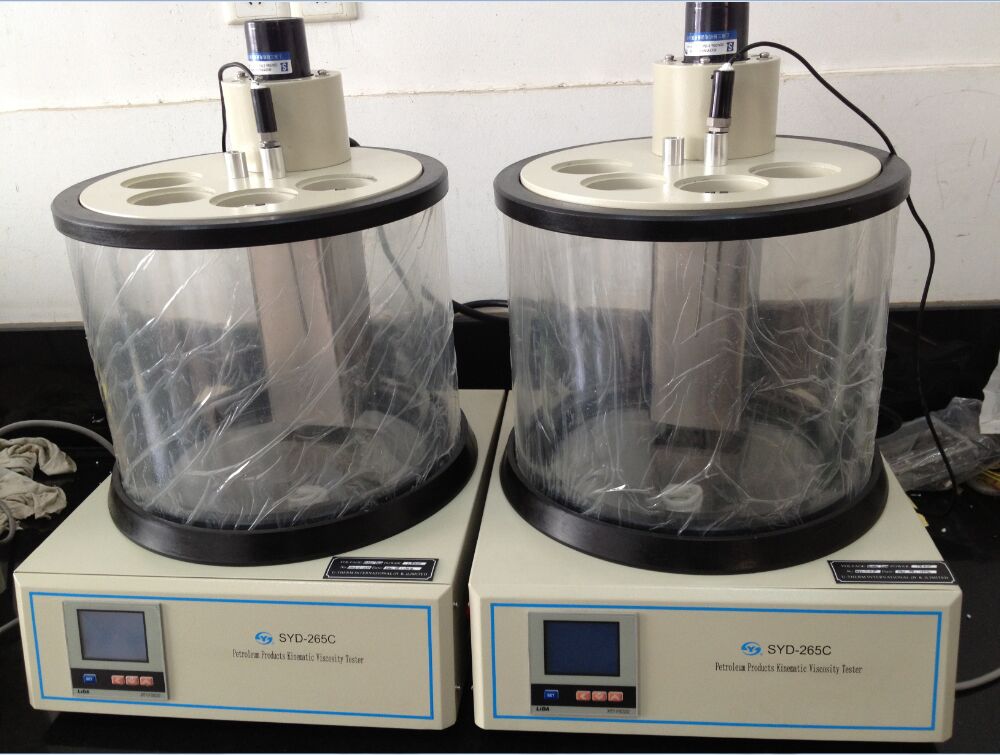

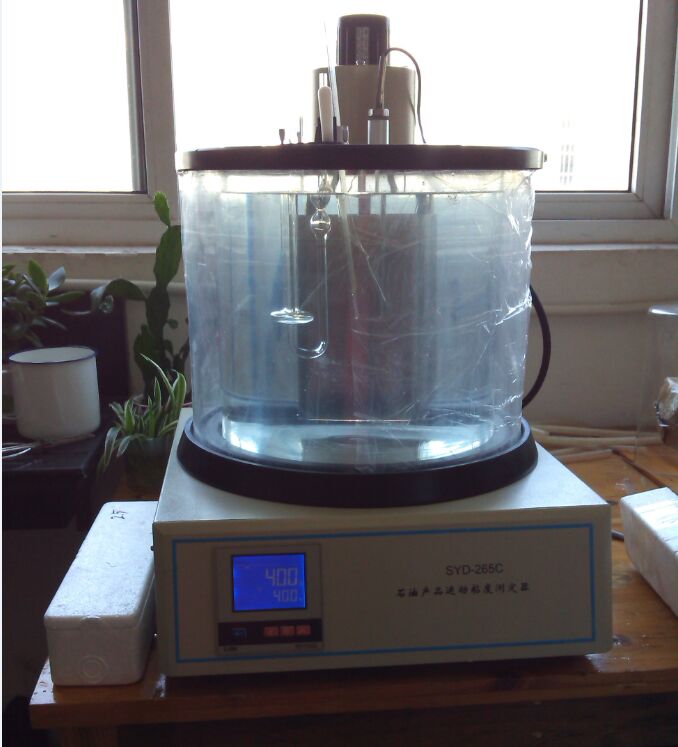

SYD-265C Asphalt Kinematic Viscosity Meter

  Main Technical Specifications

1. Power supply：     AC(220±10%)V，50Hz±5%

2. Heating power：    1600W

3. Stirring motor：     Power is 6W，rotating speed 1200RPM

4. Temperature control range：      Room temperature~100℃

5. Temperature control accuracy：    ±0.1℃

6. Constant temperature bath：     20L,double shell structure

7. Working environment：   Ambient temperature: room temperature~35℃

                                        Relative humidity: ≤85％

8. Temperature sensor：    RTD, Pt100

9. Maximum power consumption：   1800W

10. Capillary viscometer tubes(Pinkevitch viscometer)：7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm

11. Dimension：  530mm×400mm×670mm     Net weight： about 33Kg
